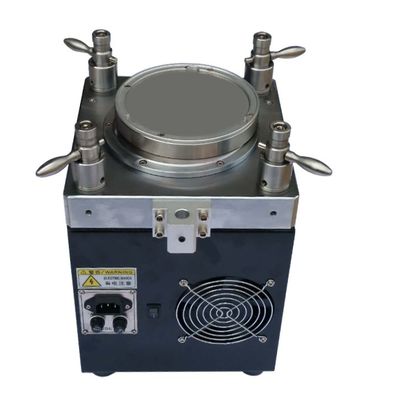

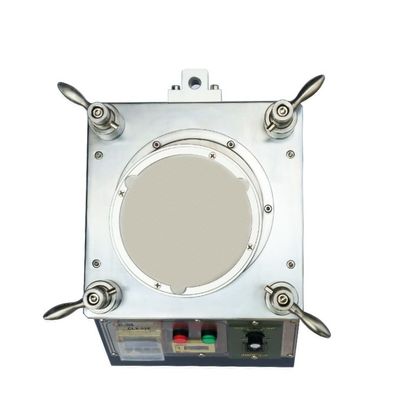

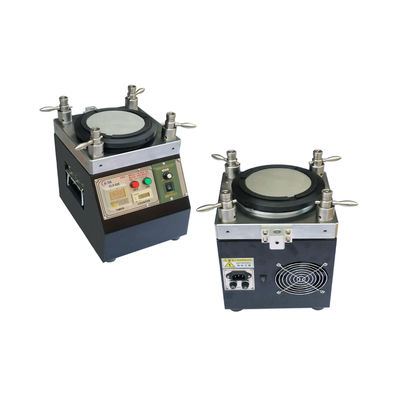

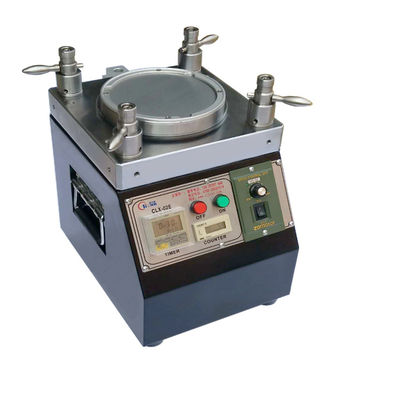

High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors

1
MOQ
$729.65-765.25
कीमत
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
वोल्टेज: 110~230VAC 50Hz/60Hz
शक्ति: 126w
वज़न: 27 किग्रा
DIMENSIONS: एल 240 मिमी x डब्ल्यू 240 मिमी x एच 260 मिमी
कनेक्टर प्रकार: एससी/एफसी/एसटी/एलसी/ई2000/एसएमए905/एमयू
कार्य तापमान: 8°C-45°C
रोटेशन प्लेट आयुध डिपो: 127 मिमी (5 इंच)
समय सैट करना: 99 मिनट 99 सेकंड (अधिकतम)
रोटेशन गति: 140 आरपीएम
प्लेट का उछलना: < 10 उम
दबाव विन्यास: 21 ~ 36 एन/सेमी2
शोर स्तर: <50 डीबी
कार्य स्थिति कंपन: 0.25 ग्राम 5~100 हर्ट्ज 10 मिनट
स्थिति कंपन को रोकना: 0.50 ग्राम 5~100 हर्ट्ज 10 मिनट
सापेक्षिक आर्द्रता: 15% ~ 85%
प्रमुखता देना:

Adjustable speed 140RPM Fiber Optic Polishing Machine

,

48 pcs MU/LC capacity Patch Cord Polishing Machine

,

36 pcs SC/FC/ST capacity Fiber Connector Polisher
मूलभूत जानकारी
उत्पत्ति के प्लेस: गुआंग्डोंग, चीन
ब्रांड नाम: chuanglixun
प्रमाणन: RoHS
मॉडल संख्या: सीएलएक्स-02ई, सीएलएक्स-02ई
भुगतान & नौवहन नियमों
उत्पाद विवरण
China Factory Price Fiber Optic Polishing Machine Patch Cord Production Machine CLX-02E
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 0
Product Overview
Our Fiber Optical Polishing Machine is designed based on international universal standards and extensive hands-on experience. It exceeds GR-326 end face geometry requirements and features four-corner compression with new I.P.C. holder technology for industry-leading results. The machine maintains consistent performance whether polishing 1 or 24 connectors, with stable jig installation and compact size. Designed for volume production, it delivers high productivity while saving material and reducing polishing costs.
Key Features
  • High-precision fiber optic polishing equipment
  • Quick-change polishing jigs for efficient operation
  • Planet orbit polishing trails with adjustable rotation speed (typically 140RPM)
  • High capacity: 48 pcs for MU/LC connectors, 36 pcs for SC/FC/ST connectors
  • 98%-100% first pass yield for end face quality

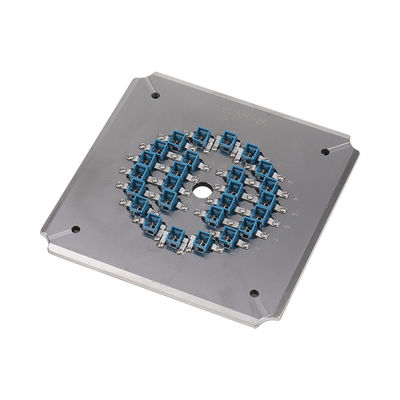

  • IPC structure fixture with independent compression for each connector
  • 3D pass rate ≥98% (typically 100% per IEC standards)
  • APC return loss ≥60dB, PC(UPC) return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Heat-treated stainless steel construction for precision and durability (8-10 year lifespan)
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 1
Technical Specifications
Specification Value
Machine Type CLX-02E
Machine Size L 240mm × W 240mm × H 260mm
Net Weight 28kg
Power Input 110~230VAC 50Hz/60Hz
Electric Power 126w
Relative Humidity 15%~85%
Work Temperature 8℃~45℃
O.D. of Rotation Plate 127 mm (5 inch)
Time Settings 99 min 99 sec (Max)
Speed for Rotation Plate 140 rpm
Height of Plate Jumpiness < 10 μm
Pressure Configuration 21 ~ 36 N/cm²
Noise Level < 50 dB
Polishing Performance
Fiber End Face Inspection Results
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 2
High-quality end-face polishing with no white spots or scratches. Fiber edge is clearly visible with excellent surface finish.
ILRL Test Results
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 3
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥55dB ≥30dB
Geometry Test Results
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 4
Parameters UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
About the Manufacturer
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as an optical communications equipment company specializing in R&D, production, after-sales service and technical support. We provide high-quality products along with comprehensive technical solutions for fiber optic connector production challenges.
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 5
Certifications
High-Precision Fiber Optic Polishing Machine with Adjustable Speed 140RPM for 48 MU/LC and 36 SC/FC/ST Connectors 6
Shipping Information
We ship worldwide using DHL, FEDEX, UPS, EMS, TNT or Sea freight. Customers may provide their courier account for optimized shipping costs.
Frequently Asked Questions
1. Are you a factory or a trader?
We are the factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
Standard shipping takes 4-6 days via DHL or FedEx. Larger quantities may require additional time.
5. How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
6. What is your product warranty?
1-year warranty covering free repairs (excluding consumables). After warranty, we provide cost-price replacement parts.
7. Do you provide customized services?
Yes, we offer customization based on customer requirements.
