24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes

1
MOQ
$210.23-230.51
कीमत
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
प्रकार: फाइबर ऑप्टिक पॉलिशिंग जिग
सामग्री: स्टेनलेस स्टील
कनेक्टर प्रकार: एफसी यूपीसी कनेक्टर
आकार: 174*174*26mm
फेरुला व्यास: 2.50 मिमी
शुद्ध वजन: 1.2 किग्रा
कुल वजन: 2.0 किग्रा
फाइबर की संख्या: 24 पद
निविष्ट वस्तु का नुकसान: ≤0.20db
वापसी हानि: ≥60dB (एपीसी)
अंत चेहरा: पीसी
क्षमता: 24 पद
वक्रता त्रिज्या: 5-25 मिमी
एपेक्स ऑफसेट: 0-50μm
फाइबर ऊंचाई: -100~+50μm
प्रमुखता देना:

High Stability Polishing Fixture

,

Good Surface Quality Fiber Optic Polishing Jig

,

Easy to Change Jigs Fiber Polishing Holder
मूलभूत जानकारी
उत्पत्ति के प्लेस: ग्वांगडोंग, चीन
ब्रांड नाम: Chuanglixun
प्रमाणन: ce
मॉडल संख्या: एफसी-यूपीसी-24, एफसी/यूपीसी-24, एफसी/यूपीसी
भुगतान & नौवहन नियमों
उत्पाद विवरण

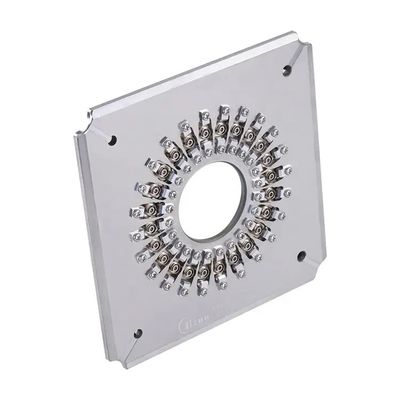

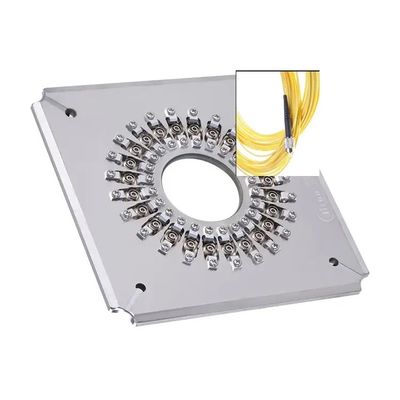

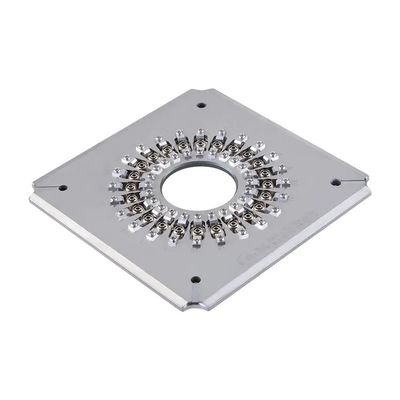

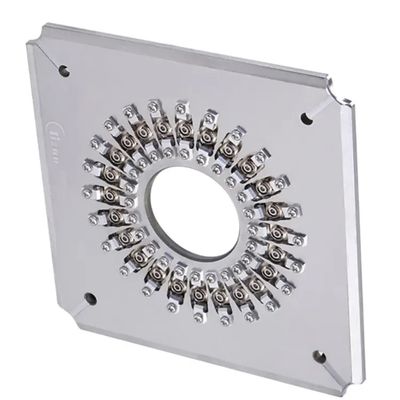

Fiber Optic Polishing Plate Holder Fixture 24 Port FC UPC Fiber Optic Connector Polishing Fixture
This high-stability fiber polishing fixture delivers excellent surface quality for FC/PC connectors. Constructed from heat-treated hardened steel (S2316) for extended service life, it supports various connector types including SC, FC, ST, and LC configurations.
Key Features
  • Designed specifically for FC/PC connectors
  • Simple jig changing mechanism for flexible operation
  • High efficiency - polishes 24, 32, or 36 connectors per cycle
  • 98-100% first pass yield for end face quality
  • IPC structure with independent compression for each connector
  • PC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
Specifications
Model FC-PC-24 FC-PC-32 FC-PC-36
Brand CLX CLX CLX
Connector Type FC PC FC PC FC PC
End-face PC PC PC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 32 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥55dB (PC) ≥55dB (PC) ≥55dB (PC)
Application Polishing assembled FC PC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.5 kgs / 2.0 kgs
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 0 24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 1 24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 2
Polishing Effect
Polished Connector Ferrule Faces
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 3
High-quality end-face polishing with no white spots or scratches. Fiber edge is clearly visible for optimal performance.
ILRL Test Result
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 4
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
Geometry Test Result
24 Port FC UPC Connector Polishing Fixture with High Stability and Good Surface Quality for Easy Jig Changes 5
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
About Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, we are an optical communications equipment company specializing in research, development, production, and technical services. We provide high-quality products, excellent after-sales service, and free technical support for fiber optic connector production challenges.
