LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100%

1
MOQ
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100%
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
प्रकार: फाइबर ऑप्टिक उत्पादन मशीन
नमूना: एलसी/एपीसी
शुद्ध वजन: 1.2 किग्रा
सामग्री: उच्च शक्ति स्टेनलेस स्टील S136
DIMENSIONS: 174 मिमी * 174 मिमी * 26 मिमी
फाइबर की संख्या: 24/36/48
निविष्ट वस्तु का नुकसान: ≤0.20db
वापसी हानि: ≥55dB (पीसी) ≥60dB (एपीसी)
फेरुला व्यास: 1.25 मिमी
क्षमता: 24/36/48 पद
अंत चेहरा: एपीसी
वक्रता त्रिज्या: 5-25 मिमी (यूपीसी), 5-12 मिमी (एपीसी)
एपेक्स ऑफसेट: 0-50μm
फाइबर ऊंचाई: -100~+50μm
कोण: 8.00+/-0.50° (एपीसी)
प्रमुखता देना:

Insertion Loss ≤0.20dB Polishing Fixture

,

Return Loss ≥60dB Fiber Polishing Jig

,

First Pass Yield 98%–100% Optical Fiber Polishing Holder
मूलभूत जानकारी
उत्पत्ति के प्लेस: ग्वांगडोंग, चीन
ब्रांड नाम: Chuanglixun
मॉडल संख्या: एलसी/एपीसी
भुगतान & नौवहन नियमों
उत्पाद विवरण

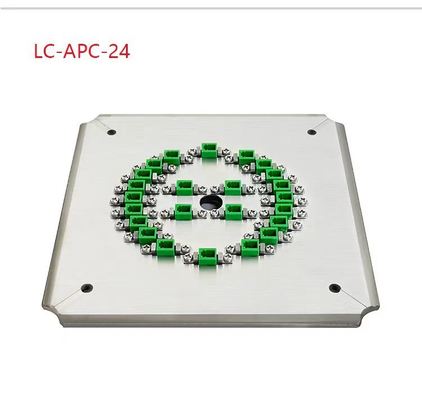

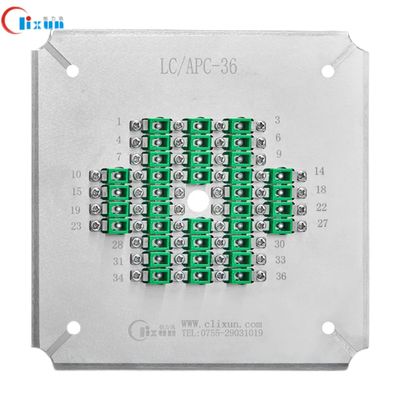

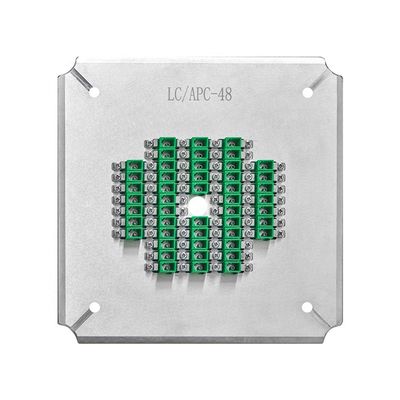

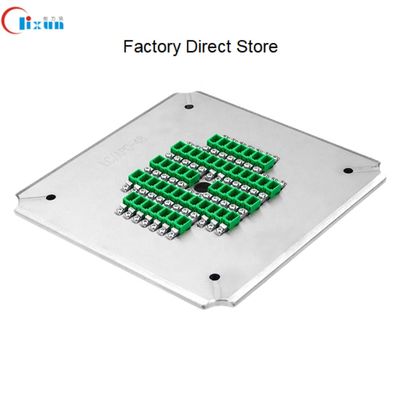

LC APC Optical Fiber 24/36/48 Ports Polishing Fixture
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 0 LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 1
This fiber polishing fixture/jig offers high stability and excellent surface quality. Constructed from high-quality heat-treated steel (hardened steel S2316) for long service life. Available in configurations for SC, FC, ST, and LC connectors, with custom designs available upon request.
Key Features:
  • Designed specifically for LC/APC connectors
  • Easy jig replacement with simple, flexible operation
  • High efficiency: polishes 24, 36, or 48 connectors per cycle with 98%-100% first-pass yield
  • IPC structure with independent compression for each connector
  • Performance metrics: APC return loss ≥60dB, UPC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
  • Constructed from heat-treated hardened steel S136 for durability
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 2 LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 3 LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 4
Technical Specifications:
Model LC-APC-24 SC-APC-36 SC-APC-48
Brand CLX CLX CLX
Connector Type LC APC LC APC LC APC
End-face APC APC APC
Ferrule Diameter 1.25mm 1.25mm 1.25mm
Capacity 24 positions 36 positions 48 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥60dB (APC) ≥60dB (APC) ≥60dB (APC)
Application Polishing assembled LC APC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight (kg) 1.3 kgs / 1.5 kgs
Suitable machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
Get a free Quotation via Us >>> GO
Polishing Effect

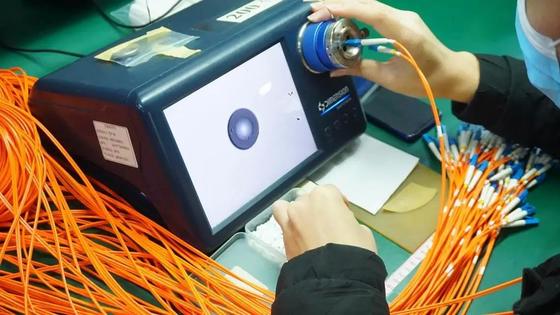

1. Polished Connector Ferrule Faces:
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges.
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 5
2. ILRL Test Result:
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB

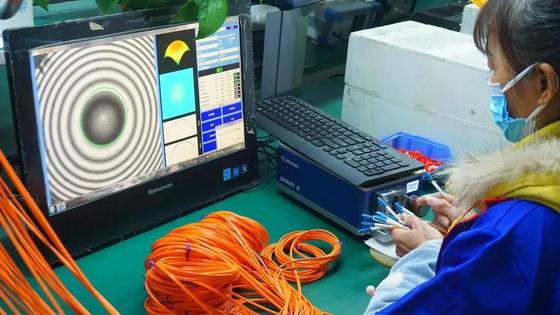

3. Geometry Test Result:
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 6
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
Company Profile
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 7
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, we are an optical communications equipment company specializing in R&D, production, after-sales service, and technical support. We provide high-quality products, excellent after-sales service, and free technical support for fiber connector production challenges.
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
Shipping via DHL or FedEx takes 4-6 days (may vary based on order quantity).
5. How do we pay?
Payment options include advance booking or multiple methods such as T/T and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, accessories available at cost.
7. Do you provide customized services?
Yes, we offer customization based on customer requirements.
Get a free Quotation via Us >>> GO
