होम /उत्पाद/पॉलिशिंग स्थिरता/26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use

26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use

1
MOQ
$325.35-346.65
कीमत
26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use
विशेषताएं गेलरी उत्पाद विवरण एक बोली का अनुरोध
विशेषताएं
निर्दिष्टीकरण
प्रकार: फाइबर ऑप्टिक उत्पादन मशीन
नमूना: एससी/एपीसी-26
सामग्री: स्टेनलेस स्टील S136
आकार: 174*174*26mm
वज़न: 1.3 किग्रा
निविष्ट वस्तु का नुकसान: ≤0.20db
वापसी हानि: ≥60dB (एपीसी)
कनेक्टर प्रकार: एससी एपीसी
अंत चेहरा: एपीसी
फेरुला व्यास: 2.5 मिमी
क्षमता: 26 पद
वक्रता त्रिज्या: 5-12 मिमी
एपेक्स ऑफसेट: 0-50μm
फाइबर ऊंचाई: -100~+50μm
कोण: 8.00+/-0.50°
प्रमुखता देना:

26 Core Polishing Fixture

,

APC Return Loss ≥60dB Polishing Jig

,

Insertion Loss ≤0.20dB Fiber Optic Polishing Fixture
मूलभूत जानकारी
उत्पत्ति के प्लेस: ग्वांगडोंग, चीन
ब्रांड नाम: Clixun
प्रमाणन: ce
मॉडल संख्या: एससी एपीसी-26
भुगतान & नौवहन नियमों
उत्पाद विवरण
SC UPC-24 Ports Fiber Optic Connector Polishing Jig Grinding Fixture
26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use 0
This high-stability fiber polishing fixture/jig delivers excellent surface quality for optical fiber patch cord production. Constructed with heat-treated hardened steel S2316 for extended durability, it supports various connector types including SC, FC, ST, and LC, with customizable configurations available.
Key Features
  • Designed specifically for SC/APC connectors
  • Quick-change jig system for flexible operation
  • High-efficiency polishing of 18, 26, or 36 connectors per cycle
  • IPC structure with independent connector compression
  • Exceptional performance: APC return loss ≥60dB, UPC return loss ≥55dB, insertion loss ≤0.20dB
  • Replaceable accessories extend service life
  • Premium heat-treated hardened steel S136 construction

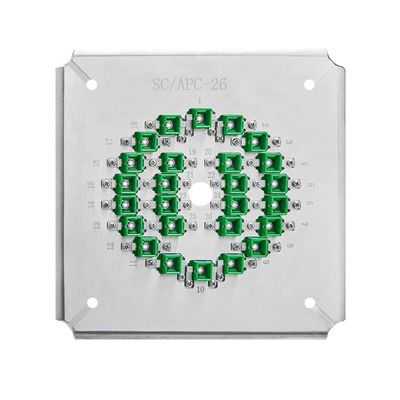

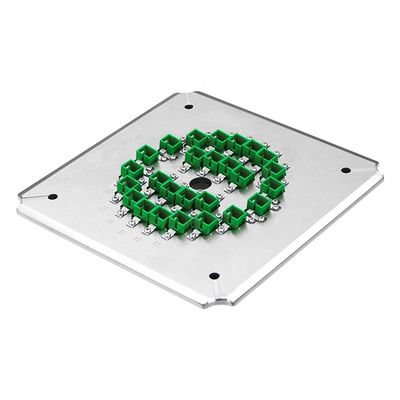

26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use 1 26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use 2 26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use 3
Technical Specifications

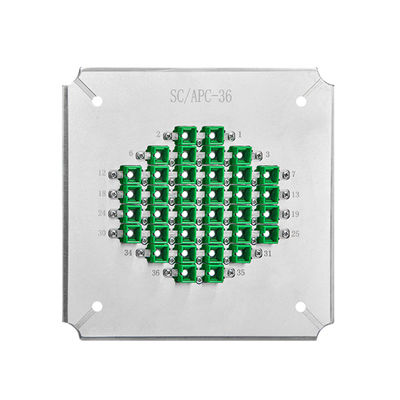

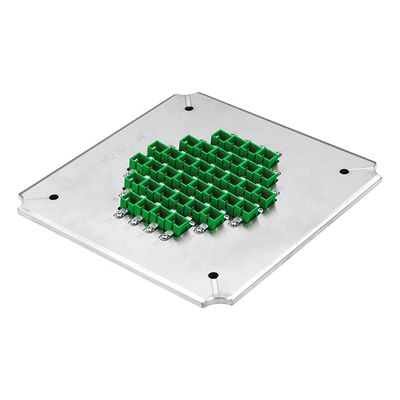

Model SC-APC-18 SC-APC-26 SC-APC-36
Brand CLX CLX CLX
Connector Type SC APC SC APC SC APC
End-face APC APC APC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 18 positions 26 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥60dB (APC) ≥60dB (APC) ≥60dB (APC)
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight 1.3 kgs / 1.5 kgs
Compatible Machines CLX-02E polishing machine, Seikoh Giken SFP-550, and similar models
Polishing Performance
Polished Connector Ferrule Faces:
26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use 4
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges.
ILRL Test Results:
26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use 5
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
Geometry Test Results:
26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use 6
Parameter UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00+/-0.50°
Manufacturer Information
26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use 7
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. has been a leading optical communications equipment manufacturer since 2010, specializing in R&D, production, and technical support for fiber optic connector production solutions.
26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use 8 26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use 9 26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use 10
Frequently Asked Questions
1. Are you a factory or a trader?
We are the manufacturer.
2. What is your MOQ?
Minimum order quantity is 1 piece.
3. Do you provide sample services?
Yes, samples are available.
4. How will you ship to me?
Standard shipping via DHL or FedEx takes 4-6 days (may vary based on order quantity).
5. How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
6. What is your product warranty?
1-year warranty covering free repairs (excluding consumables). Post-warranty support available at cost.
7. Do you provide customized services?
Yes, we offer custom solutions based on customer requirements.
26 Core SC APC Polishing Fixture with APC Return Loss ≥60dB and Insertion Loss ≤0.20dB for FTTH Use 11
